BELOW SPECS ARE FROM CATALOG, NOT GURANTEED:
Ambient Temperature Range
40 °C
Assembly Box Mounting
F1 Only
Base RPM
1725 rpm
Description

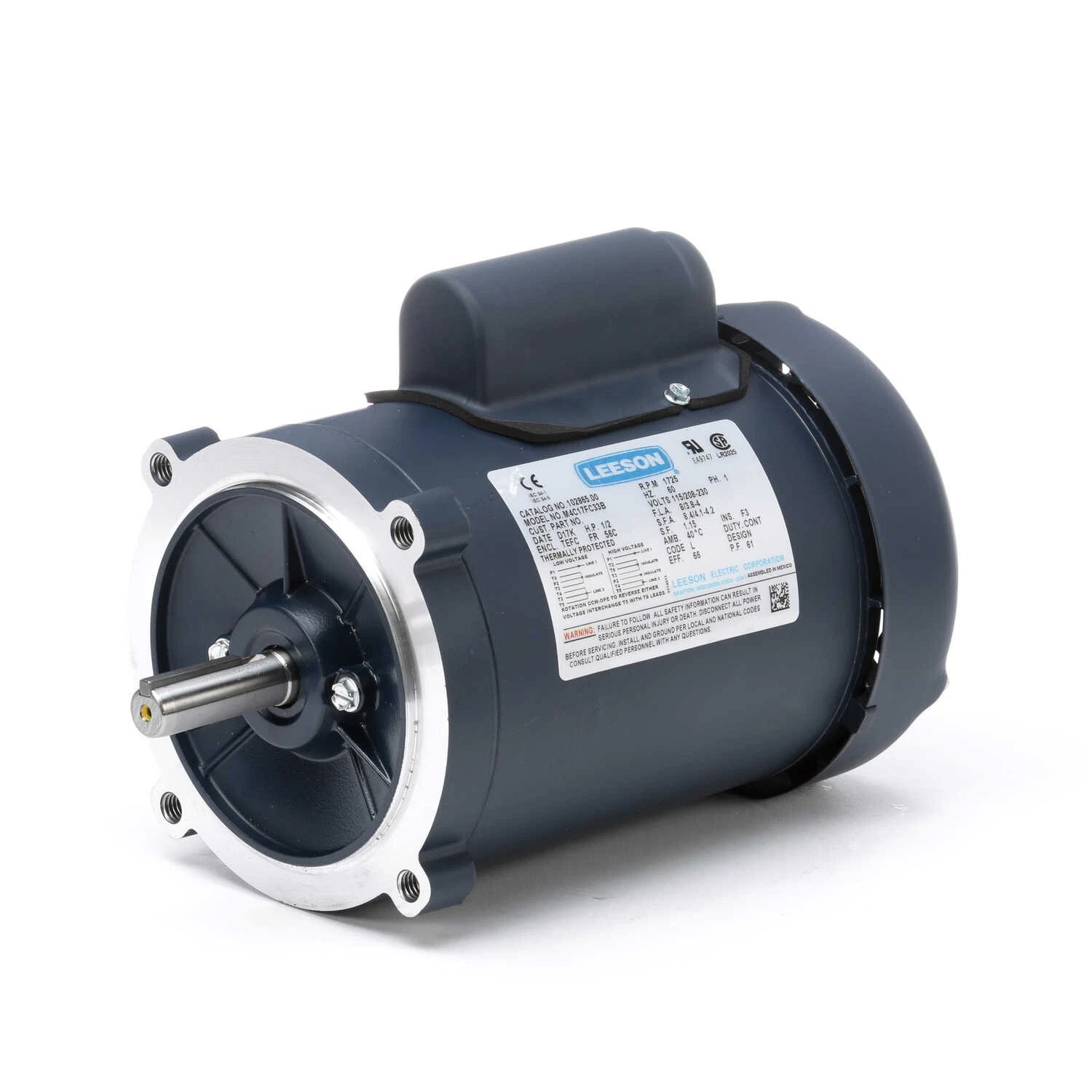

General Purpose Motor, 0.50 HP, 1 Ph, 60 Hz, 115/230 V, 1800 RPM, 56C Frame, TEFC
Description Keyword
1/2 hp
Drive End Bearing Size
6203
Duty Condition Type
Continuous Duty
Electrical Type
Capacitor Start Induction Run
Enclosure Type
TEFC (Totally Enclosed Fan Cooled)
Type Of Bearing
Ball Bearing
Frame Material
Rolled Steel
Frame Size
56C
Frequency Rating
60 Hz
Full Load Efficiency
66.00 %
Harmonization Code
8501.40.4040
IP Rating
43
Insulation Class
F
KVA Code
L
Manufacturer Product Page
Click here
Manufacturer Upc Number
691720105795
Motor Horsepower
1/2 hp
Motor Length Less Shaft
6.00 in
Motor Orientation
Horizontal
Motor Phase
1 ph
Motor Poles
4-pole
Motor Supply Voltage
115/208-230 V
Mounting Type
Round
NEMA Design Class
NO DESIGN CODE
Number Of Speeds
1
Opposite Drive End Bearing Size
6203
Opposite Drive End Bearing Type
Ball
Overall Length C Dimension
10.69 in
Overload Protector
Manual
Service Factor
1.15
Shaft Diameter
0.6250 in
Shaft Rotation
Selective Counterclockwise
Shaft Type
NEMA 56
Standards Met
CE, UL Recognized, CSA
Starting Method
Across The Line
Synchronous Rpm
1800 rpm
Thermal Protection
Manual
Voltage
115/230 V
Volts @ Frequency
115/208-230 V @ 60 Hz
Weight
21.00 lbs
Wiring Diagram
Click here
kW
0.37 kW
Product Type
General Purpose Motors
