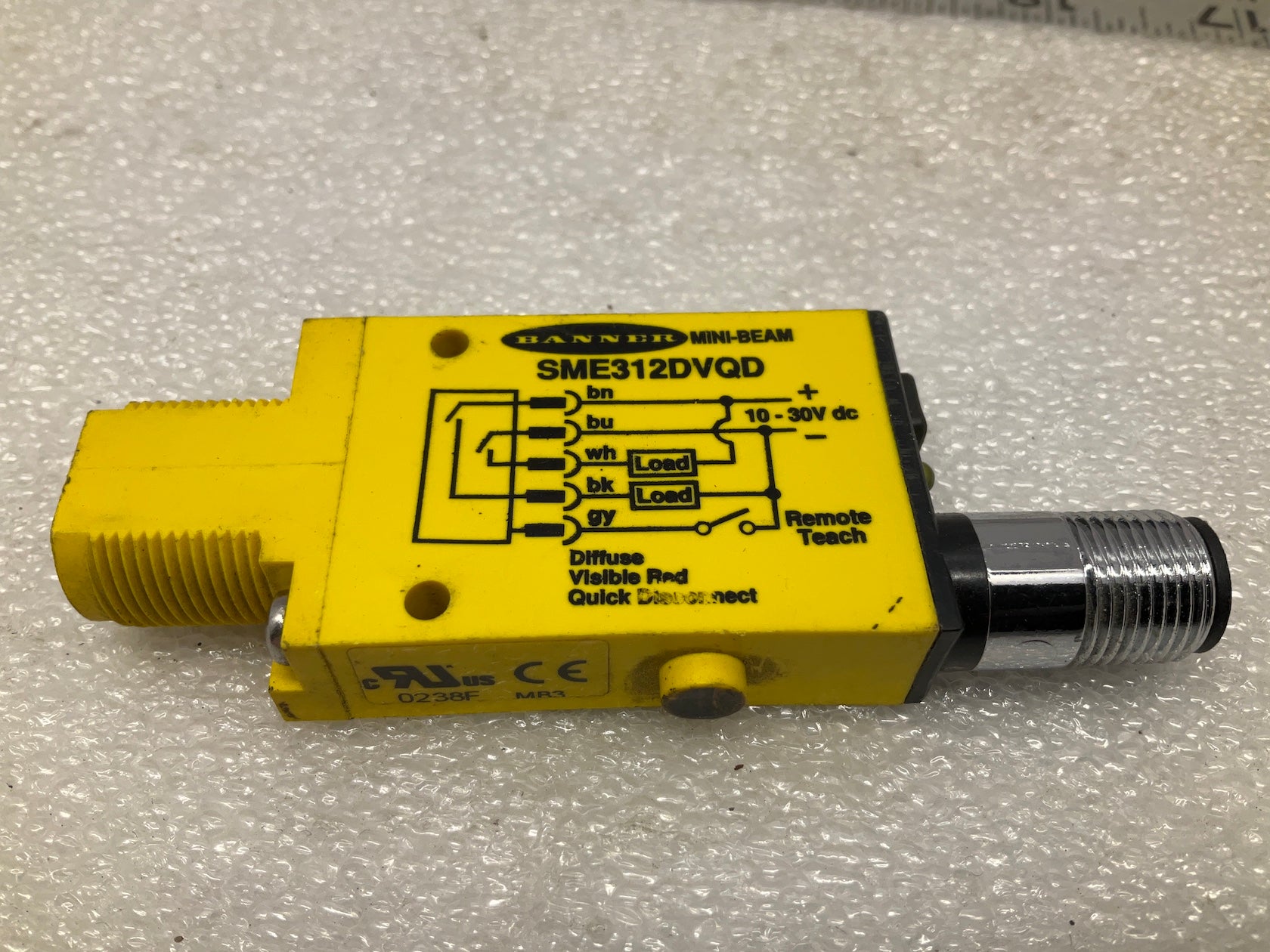

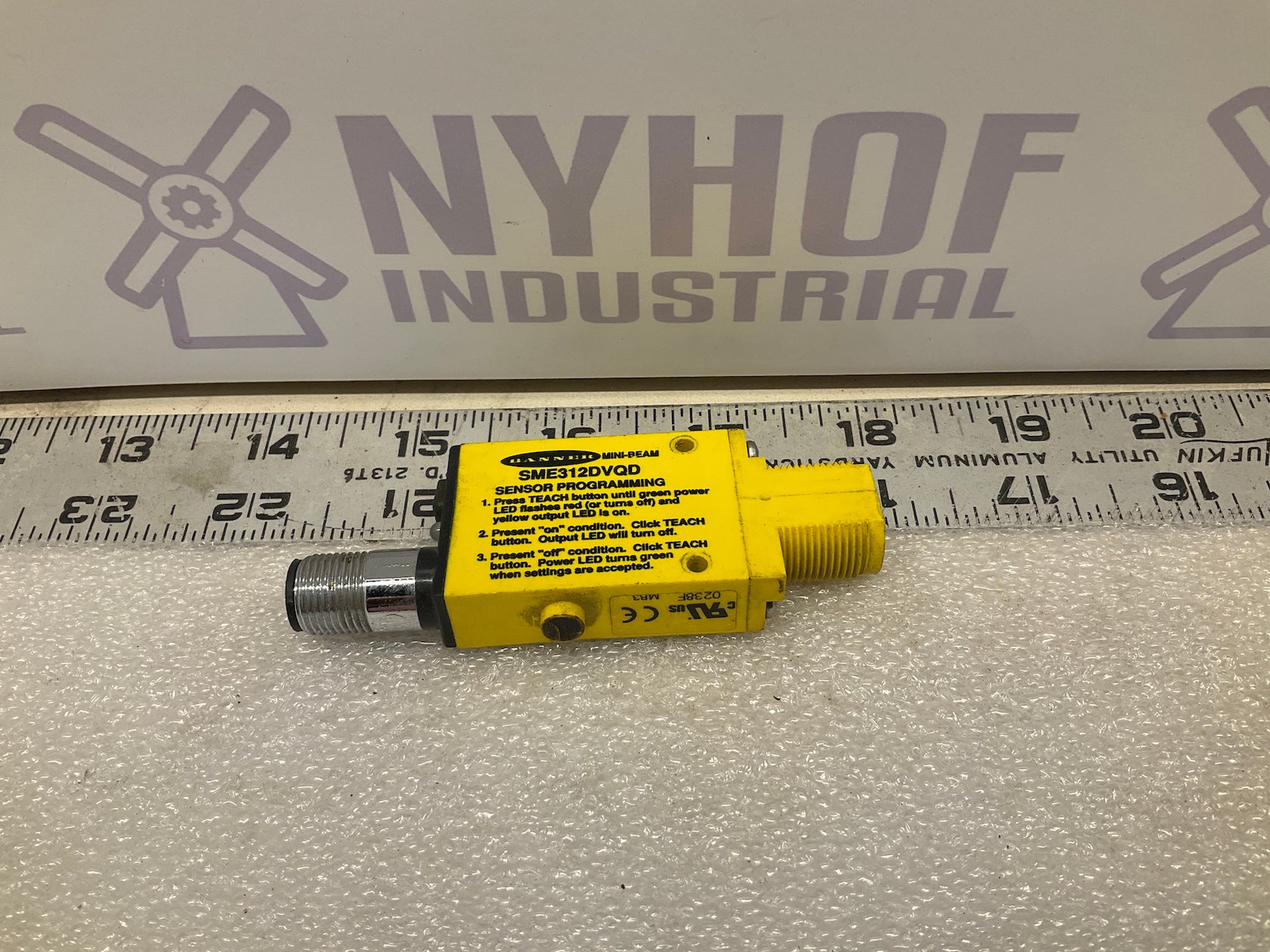

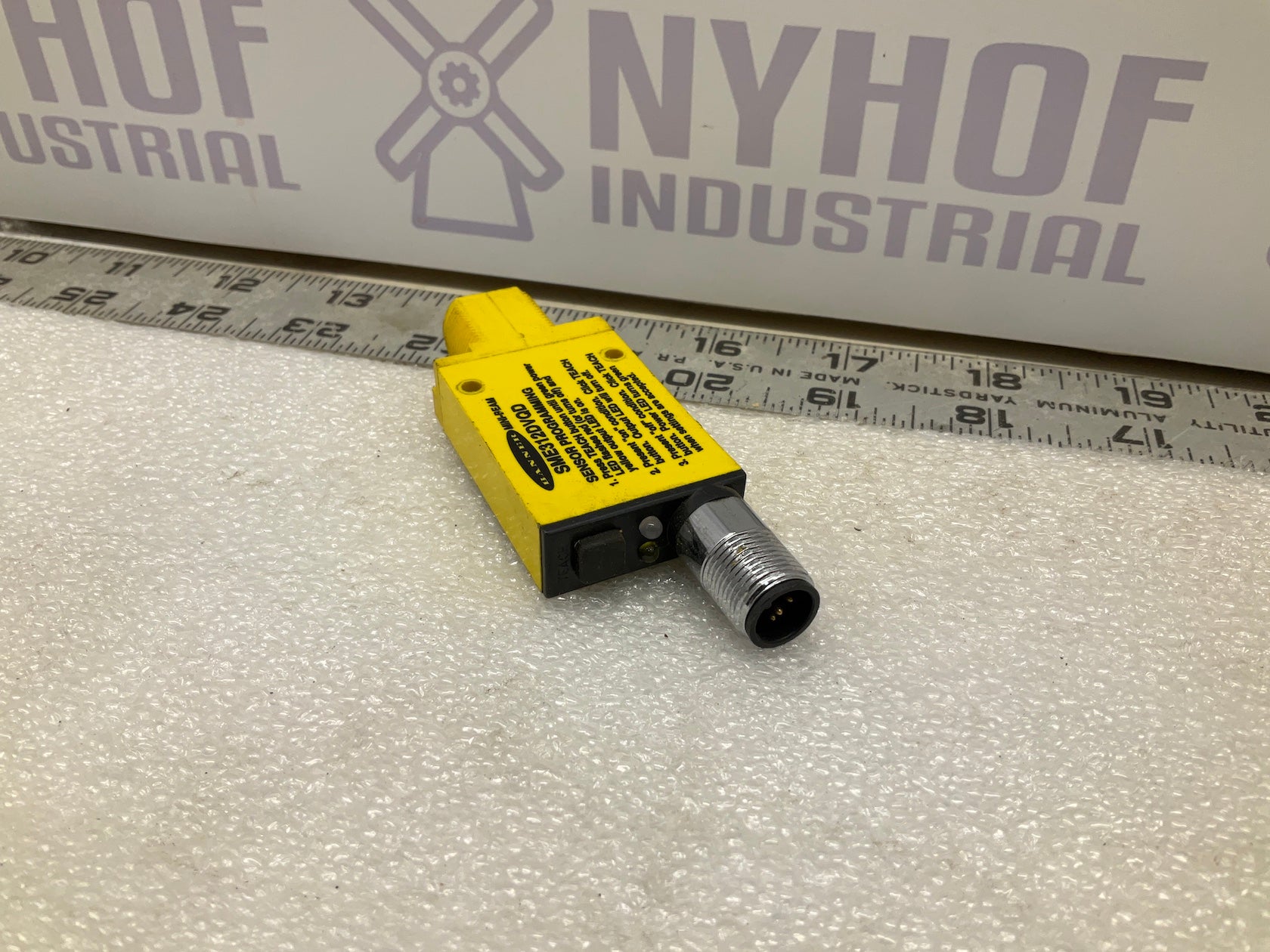

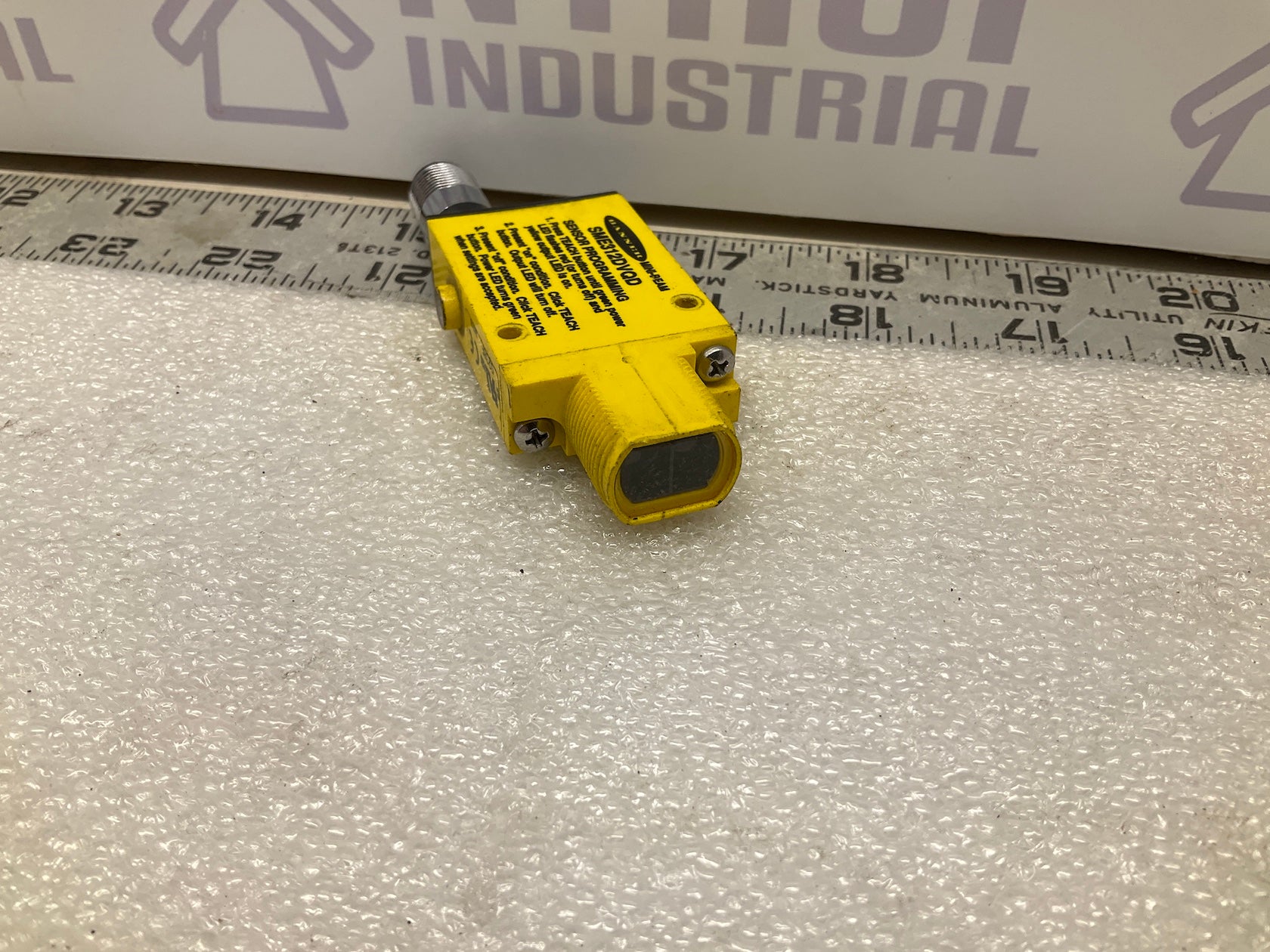

Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Rectangular w/M18 Mount
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 1100
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 70
Output response time (ms) 0.5
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 1000
Repeatability (µs) 100
Number of Pins 5
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Teach Button
Barrel Diameter (mm) 18
Indicator LEDs
